Several people have complained that their after market pipes are too loud.
This can be very annoying on long trips. Here is a cheap and easy modification for the DG HK baffles.
1. Go to
Home Depot and buy 2 Danco Crumb Cups. Located in the sink repair
department. Danco part #89049. The price at my Home Depot was $1.48
each. They appear to be stainless steel.

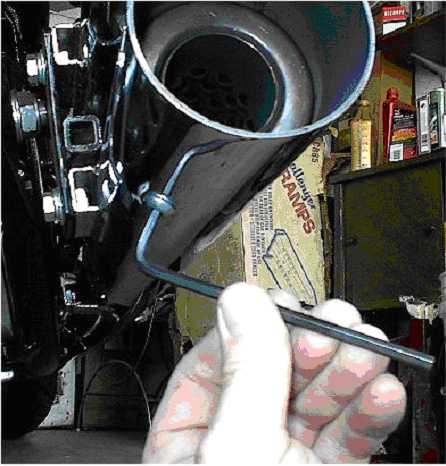

2. Remove the baffle set screw with a 3/16" Allen head wrench.
If the baffle has been in for a while, a squirt of WD-40 around the inner edge will assist with the removal.
3. Place the baffle in a vise.
4.

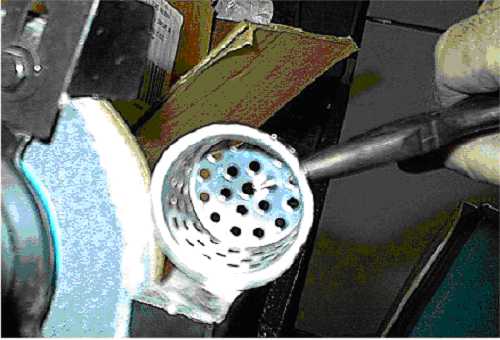

The lip of the crumb cup needs to be ground so it will fit inside the
baffle. Slowly turn on a grinder using a pair of pliers or welders
gloves (it will get hot!)
5. Cut between holes on 4 sides of basket using a pair of dykes. Bend up and down where cuts were made.

6.

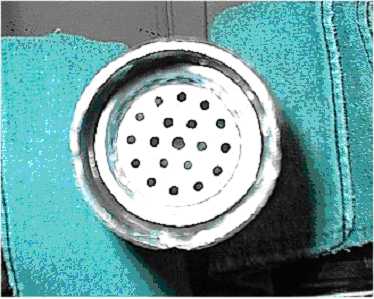

Insert basket into baffle. Push down until the lip on the basket
contacts the lip inside of the baffle. Tap lightly around the basket's
outer edge with a screwdriver or drift and a hammer if necessary. The
cut and bends on the 4 sides will hold the baffle in place. I also
recommend taking a punch and lightly staking the basket around it's
lip. 3 or 4 light stake points should assure a rattle free assembly.
NOTE: The crumb cup (basket) goes in the end coming from the header pipe.
7. Put baffle back in exhaust pipe. That may be the hardest part! Lining it back up takes practice!
Be sure to use some Loctite on the set screw when reinstalling. Be sure to wipe away any remaining WD-40.
The
resulting sound will be somewhere between a stage 1 and stage 3 mod on
the OEM pipes. This will result in a slight loss of power. You can

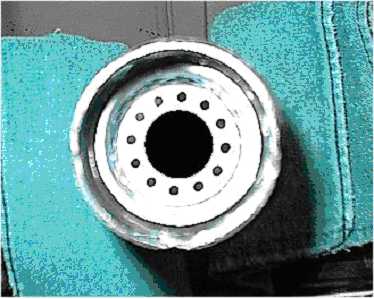

continue to fine-tune the sound and performance by drilling out the
center hole of the inserted cup (see below).

I personally did the additional mod pictured above on the right and am very happy with the volume and performance.
EDITOR

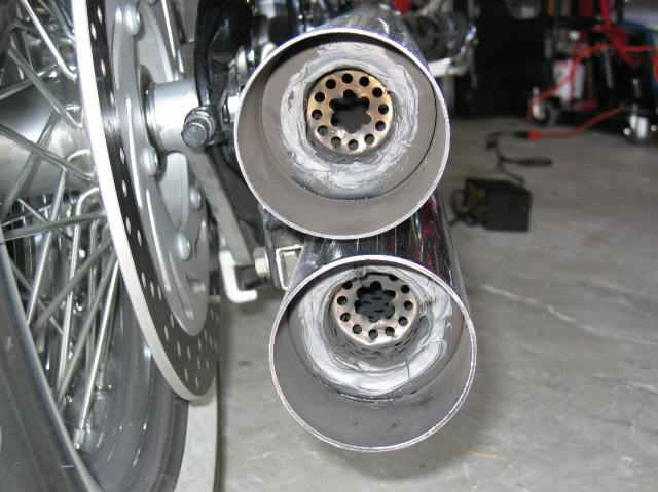

NOTE: Mike also sent us this picture of an alternative suggested to him
by Starman with the following note: "Alternatively, you could attempt
the same mod without removing the baffles as pictured above.
Wedge the crumb cups into the back of the baffle and seal with a
hi-temp silicone" -Thanks Starman!
