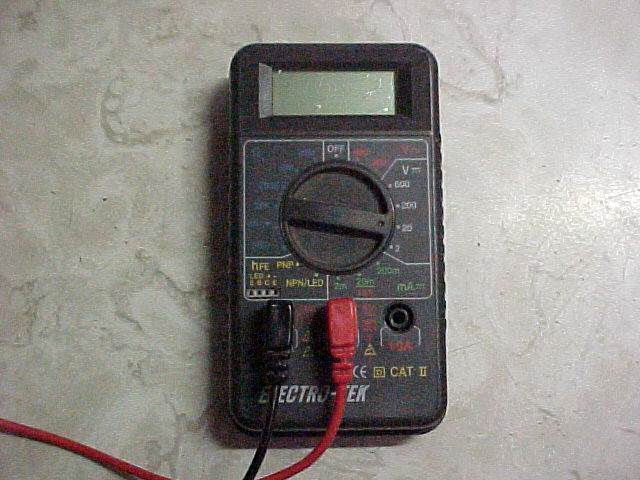

To test your bike you will need a
Volt/Ohmeter (VOM) capable of testing a 12v system. Digitals
are nice since the provide unmistakable reading. You can buy
one for $40 bucks or so or ask around is see if you can borrow
one. Next you will need a method to
connect this to the electric system on your bike if you plan
to do a road test. I already had a two prong trailer connector
attached to my battery so I could plug in a trickle charger in
the winter. If you don't have one it is easy to attach one.

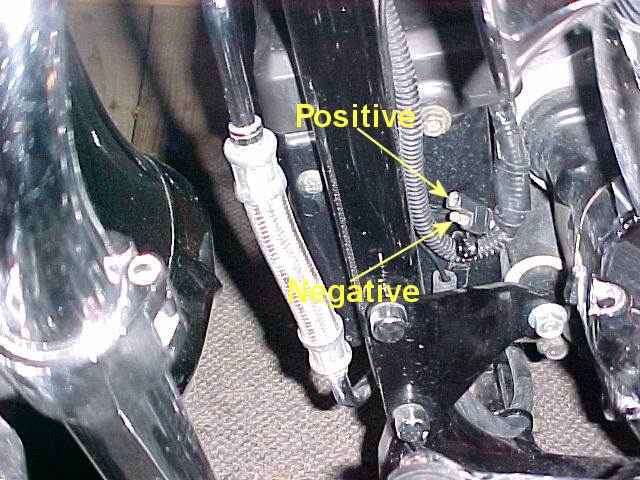

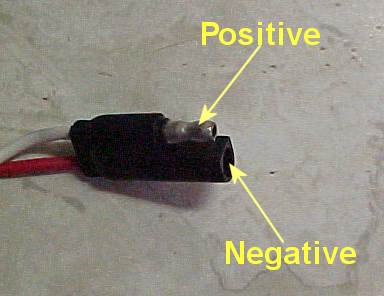

If you use a two prong connector similar to the one I used you need to remove the battery cover and hook one wire up to the + side of the battery and one to the - side of the battery. Putting a fuse in the + line is a good idea also. If you click on the picture above right you will see that I wired the hot side to the recessed portion of the plug so as to not have an exposed hot lead. I have an extra set of leads to my
ohmeter with the same connector and some added wire. If you
are using the plug wired as I mentioned above then remember to
wire the connector in reverse, ie the exposed portion of this
plug is hot and the recessed is negative. Wiring this up only
needs to be done if you plan on doing a road test. I then took some 'terrorist safety'
tape (duct tape) and taped the ohmeter to my bike. You might
not want to do this. I taped mine to the center console on the
black portion just below the speedo and only ran the tape to
the chrome edges. Didn't wanna run the tape over on the paint
just in case. Once you have appropriately mounted the VOM and made sure that all the wires are away from hot things you are ready to road test and compare your findings. |
